KLQ6116HY
MAIN PARAMETERS
| BUS Model | KLQ6116HY (11.0 METER) |
| Standard seat number | 49+1+1 ( 2x2 seats) |
| Overall dimensions | mm 11025x2550x3600 |
| Manufacturer’s max. total mass | kg 17000 |
| Overhang front / rear | mm 2170/3170 |
| Max speed | km/h 100 |
| Kerb mass | kg 12500 |
| Fuel tank | L 360 |
| Engline Model | Chinese Yuchai YCK08330-50 (330Hp, Euro V) |
| Clutch | SACHS clutch |
| Gearbox | Fast Manual Transmission |
| Propeller shaft | Strengthened propeller shaft |
| Suspension | Air suspension |
| Axle | Fangsheng front and rear axle (drum) |
| Brake | Dual-circuit service brake; spring energy parking brake |
| Steering | Power steering gear |
| Tyres & Wheel | 11R22.5 |
| Others | Stainless steel wheel cover; with ABS sensor; With ATS cooling Fan system |
| A/C | 32000kCal/h, Bock compressor; |
| Toilet | Without |
| Camera monitor | Color reverse camera and reverse radar |

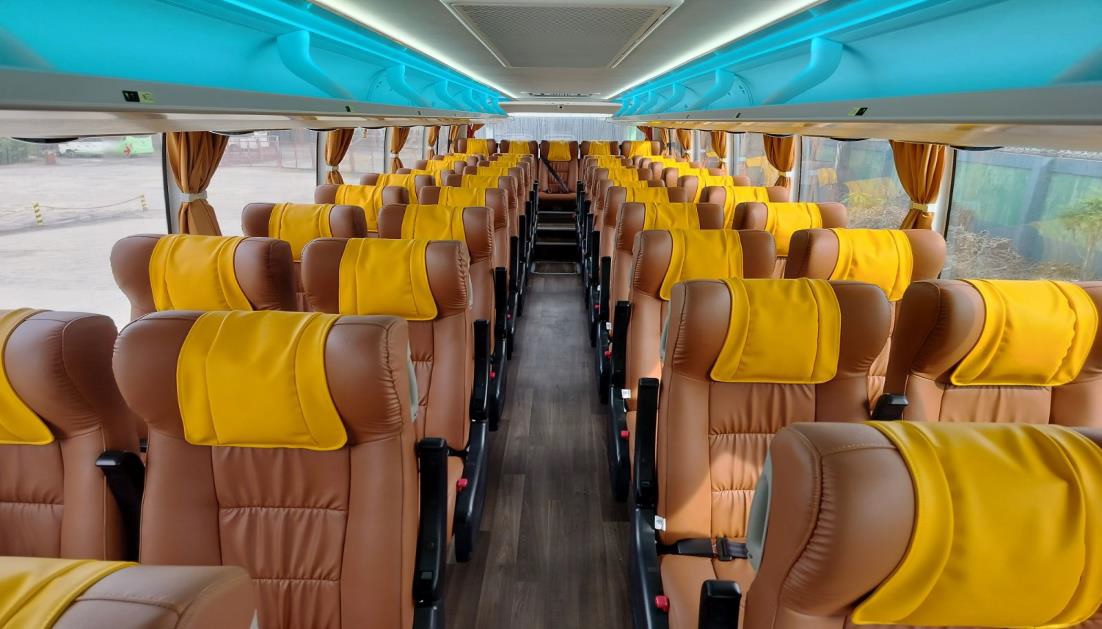

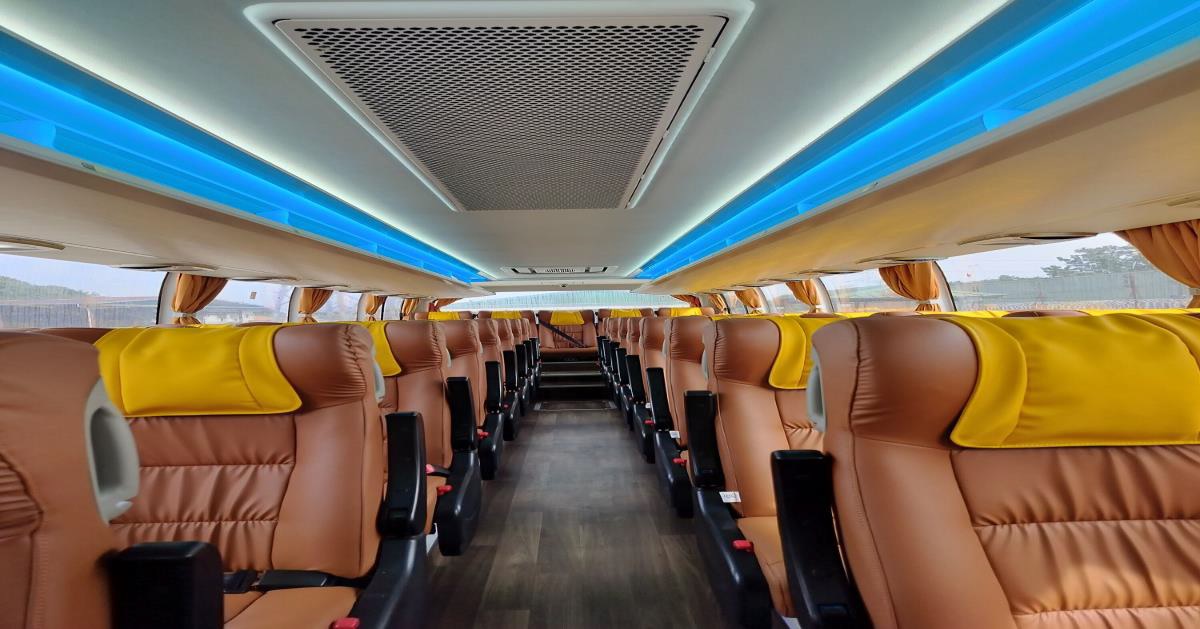

| Seats | 2x2 seat |
| Windows | Seal window Light Grey Glass |
| Audio Visual | With Video system |
| Door | Remote control |
| Rear view mirror | Electric |

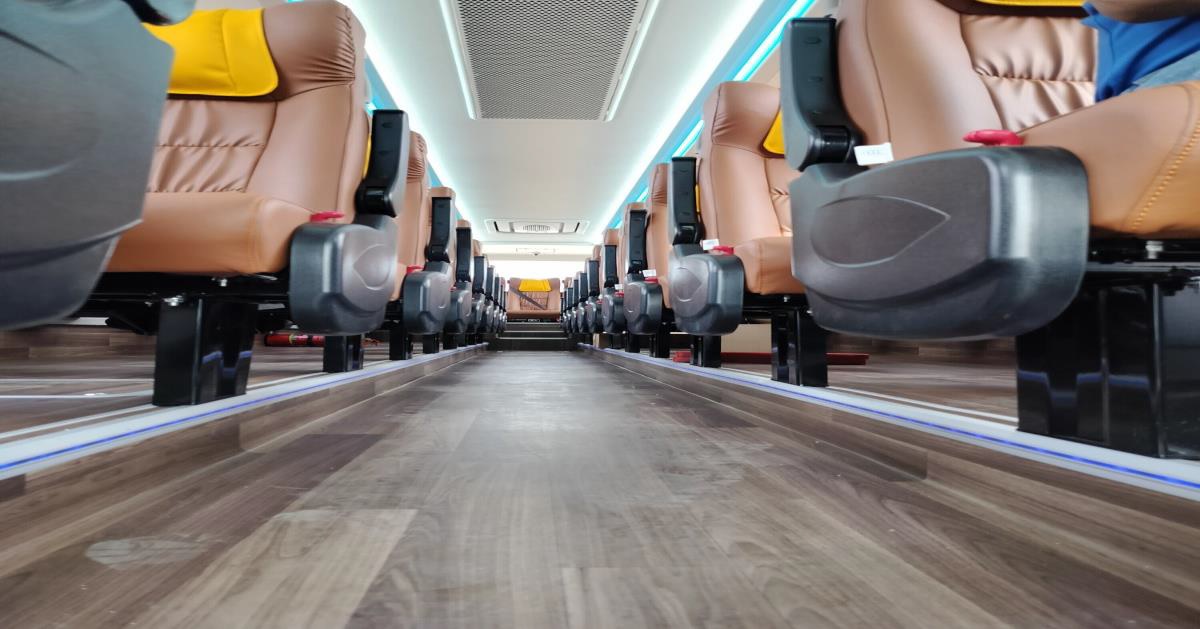

| Floor | Anti-attrition floor leatheroid (gray) | Others | Color reverse camera ;CCTV; Digital Clock; Manual Sun visor; Cloth folding window curtain; 2 emergency roof exit; Automatic fire extinguisher device in engine compartment; Safety hammer;2kg fire extinguisher; |

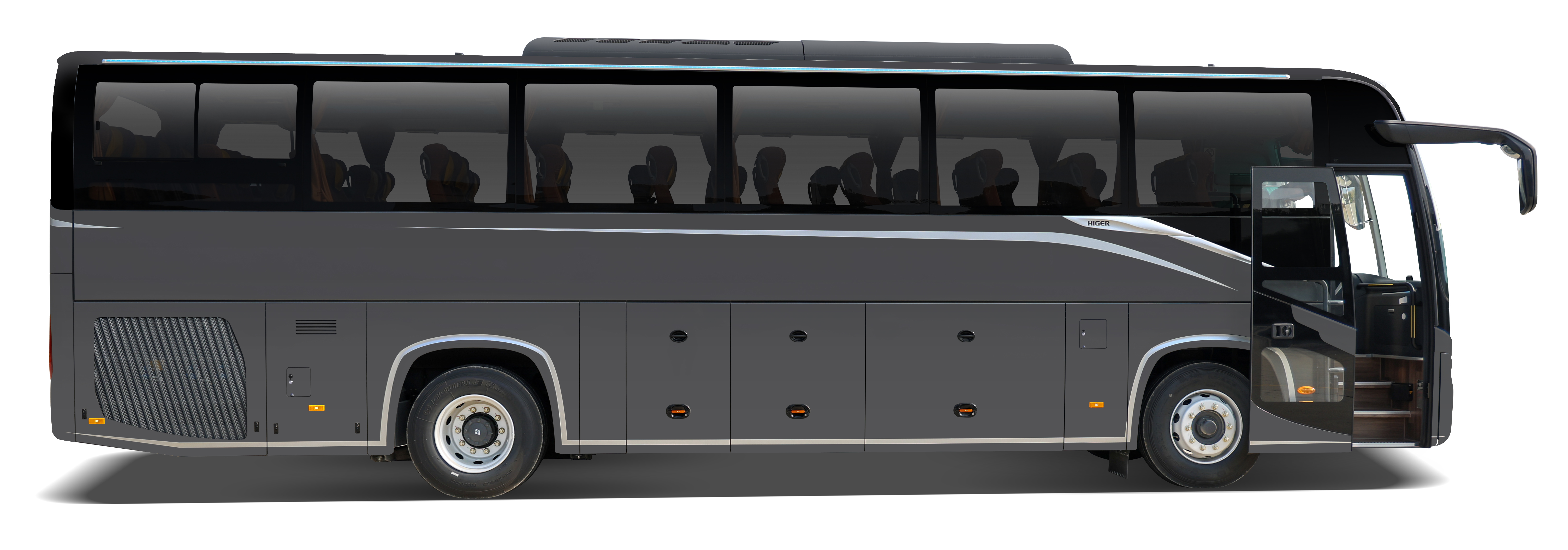

click any of the images above to enlarge
The manufacturer reserves the right to change the technical specs for better improvement without prior notice.
